HWF6630-10 Tank-Type Gas Phase Deposition Furnace
Key Specifications
| Attribute | Value |
| Atmosphere | Nitrogen/Hydrogen/Acetylene |
| Heating Zone Dimensions | Φ660×300mm(D*H) |
| Thermocouple Type | B |
| Heating Rate | ≤6ºC/Min |
| Temperature Control Stability | ±1ºC |
Product Overview
The HWF6630-10 tank vapor deposition furnace is designed for medium-temperature heat treatment of electronic products. It supports vapor phase reaction processes in nitrogen, acetylene, and hydrogen atmospheres, as well as sintering processes under protective atmospheres. Equipped with a real-time computer monitoring system, this furnace is ideal for material process testing in research environments.
Technical Parameters
- Model: HWF6630-10
- Rated Temperature: 750°C (Maximum: 1000°C)
- Heating Zone Dimensions: Φ660×300mm (D×H)
- Chamber Material: SUS310S stainless steel
- Maximum Heating Power: 16kW
- Heating Method: Bottom + Surrounding
- Temperature Control Points: 2 (Bottom + Side)
- Thermocouple Type: K-type
- Heating Element: FEC Ceramic Fiber Heater

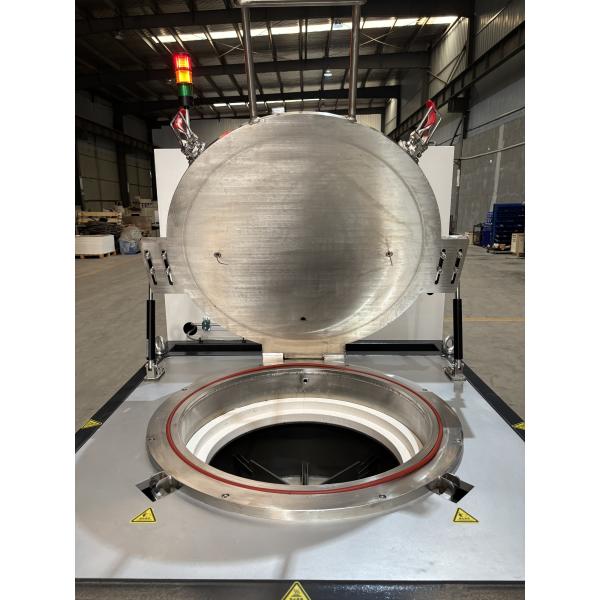

- Door Opening Method: Top-opening design
- Temperature Stability: ±1°C
- Control System: Imported PID auto-tuning module
- Program Steps: 20 steps
- Safety Features: Over-temperature and thermocouple breakage alarms
Standard Delivery Contents
| Item | Specification | Quantity |
| Furnace Unit | | 1 |
| Control Cabinet | | 1 |
| Temperature Control Module | Yamatake or equivalent | 1 |
| Touchscreen | 10-inch | 1 |
| Mass Flow Meters | Nitrogen 200L/min, others 50L/min | 3 |
Certifications
Packaging & Shipping
Installation Requirements
- Environment: 0-40°C, ≤80% RH, no corrosive gases
- Floor: Level, vibration-free, >500 kg/m² load capacity
- Power: 22 kVA, 3-phase 5-wire, 220/380 V, 50 Hz
- Space: 1500×1500×3000mm (D×W×H) minimum
